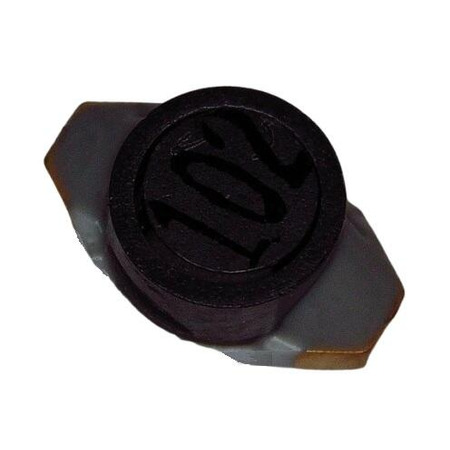

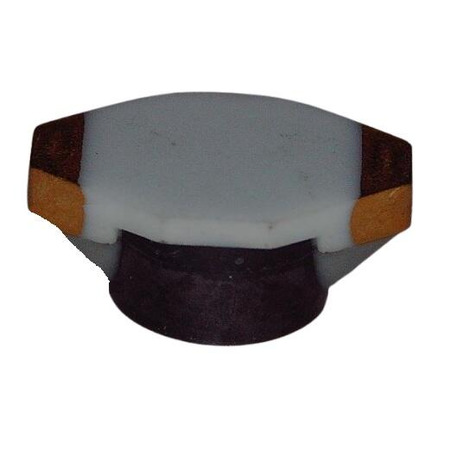

SMD INDUTOR 1UH 1,4A 20% DS1608C-102C INDUCTORS SMT

Core material Ferrite
Terminations RoHS compliant electroplated gold (<50 µin) over nickel
over moly-manganese. Other terminations available at additional cost.
Weight 144– 167 mg
Ambient temperature –40°C to +85°C with Isat current
Maximum part temperature +105°C (ambient + temp rise)
Storage temperature Component: –40°C to +105°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Packaging 750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,
0.28 mm thick, 4 mm pocket spacing, 3 mm pocket depth
PCB washing Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See Doc787_PCB_Washing.pdf
